Kamera
| Sensorius | 1/1.8" progressive scan CMOS |
|---|---|
| Maks. rezoliucija | 2560 × 1440 |
| Minimalus apšvietimas | Color: 0.005 Lux @ (F1.5, AGC ON) B/W: 0.001 Lux @ (F1.5, AGC ON) |
| Užrakto greitis | 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Priartinimas | 31 × optical, 16 × digital |
| Lėtas užraktas | yes |
Lęšis
| FOV | 5.9 mm to 182.9 mm, 31 × optical zoom |
|---|---|
| FOV | Horizontal field of view: 60.2° to 2.5° (wide-tele) Vertical field of view: 35.2° to 1.3° (wide-tele) Diagonal field of view: 67.4° to 2.7° (wide-tele) |
| Fokusavimas | semi-auto,manual,auto |
| Diafragama | F1.5 |
| Priartinimo greitis | Approx. 7 s (Optical Lens, Wide-Tele) |
PTZ
| Movement Range (Pan) | 360° endless |
|---|---|
| Movement Range (Tilt) | From 0° to 90° (Auto Flip) |
| Pan greitis | Configurable, from 0.1°/s to 300°/s, preset speed: 540°/s |
| Tilt greitis | Configurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s |
| Proporcingas Pan | yes |
| Iš anksto išsaugoti nustatymai | 300 |
| Išsaugotų nustatymų sustabdymas | yes |
| Patruliavimas | 8 patrols, up to 32 presets for each patrol |
| Išsaugotų rėžimų skenavimas | 4 pattern scans, record time over 10 minutes for each scan |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| 3D pozicija | yes |
| PTZ būsenos vaizdavimas | yes |
| Užduočių grafikas | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output |
| Išjungimo atmintis | yes |
Vaizdas
| Pagrindinis srautas | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
|---|---|
| Antrinis srautas | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Trečias srautas | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Vaizdo bitų dažnis | 32 kbps to 16384 kbps |
| H.264 tipas | Baseline profile,Main profile,High profile |
| H.265 tipas | main profile |
| Scalable Video Coding (SVC) | yes |
| Region of Interest (ROI) | yes |
| Tikslinis apkarpymas | no |
Garsas
| Garso suspaudimas | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
|---|---|
| Garso bitų greitis | G.722.1: 16Kbps,G.711ulaw: 64 kbps, G.711alaw: 64 kbps, MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps |
| Garso atrankos dažnis | MP2L2: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz,32kHz, 48kHz |
| Pašalinių garsų šalinimas | yes |
Internetas
| Protokolai | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
|---|---|
| Tiesioginis vaizdo žiūrėjimas | Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK |
| Naudotojas/prievadas | Up to 32 users. 3 levels: Administrator, Operator and User |
| Saugumas | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Vidinė atmintis | NAS (NFS, SMB/CIFS),auto network replenishment (ANR) |
| Klientas | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Naršyklė | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
Nuotrauka
| Nuotraukos parametrų keitiklis | yes |
|---|---|
| Nuotraukos nustatymai | saturation, brightness, sharpness, contrast |
| Diena/Naktis režimas | auto |
| WDR | 120 dB |
| SNR | ＞52dB |
| Rūko šalinimas | yes |
| Nuotraukų pagražinimas | HLC/BLC/3D DNR/EIS/Regional Exposure/Regional Focus |
| Privatumo kaukė | up to 24 masks |
Sąsaja
| Interneto sąsaja | RJ45, self-adaptive 10M/100M Ethernet port |
|---|---|
| Saugyklos vieta | support microSD/microSDHC/microSDXC cards, up to 256 GB |
| Garsas | 1-ch audio input and 1-ch audio output |
| Signalizacija | 7-ch alarm input and 2-ch alarm output |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
Funkcijos
| Pagrindinės funkcijos | Motion detection,video tampering alarm,alarm input and output,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot) |
|---|---|
| Išmaniosios funkcijos | intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
| Sąsaja | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Išmani jungtis | manual tracking,event tracking |
Išmaniosios funkcijos
| Veido atpažinimas | 1. Detects up to 10 faces simultaneously 2. Uploads face with background and closed-up face pictures 3. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face |
|---|---|
| Veidų palyginimas | Recognizes face identity via face modeling, grading and comparing to those in face library |
Pagrindinis
| Sistemos parametrai | 100 VAC to 240 VAC, Max.: 60 W |
|---|---|

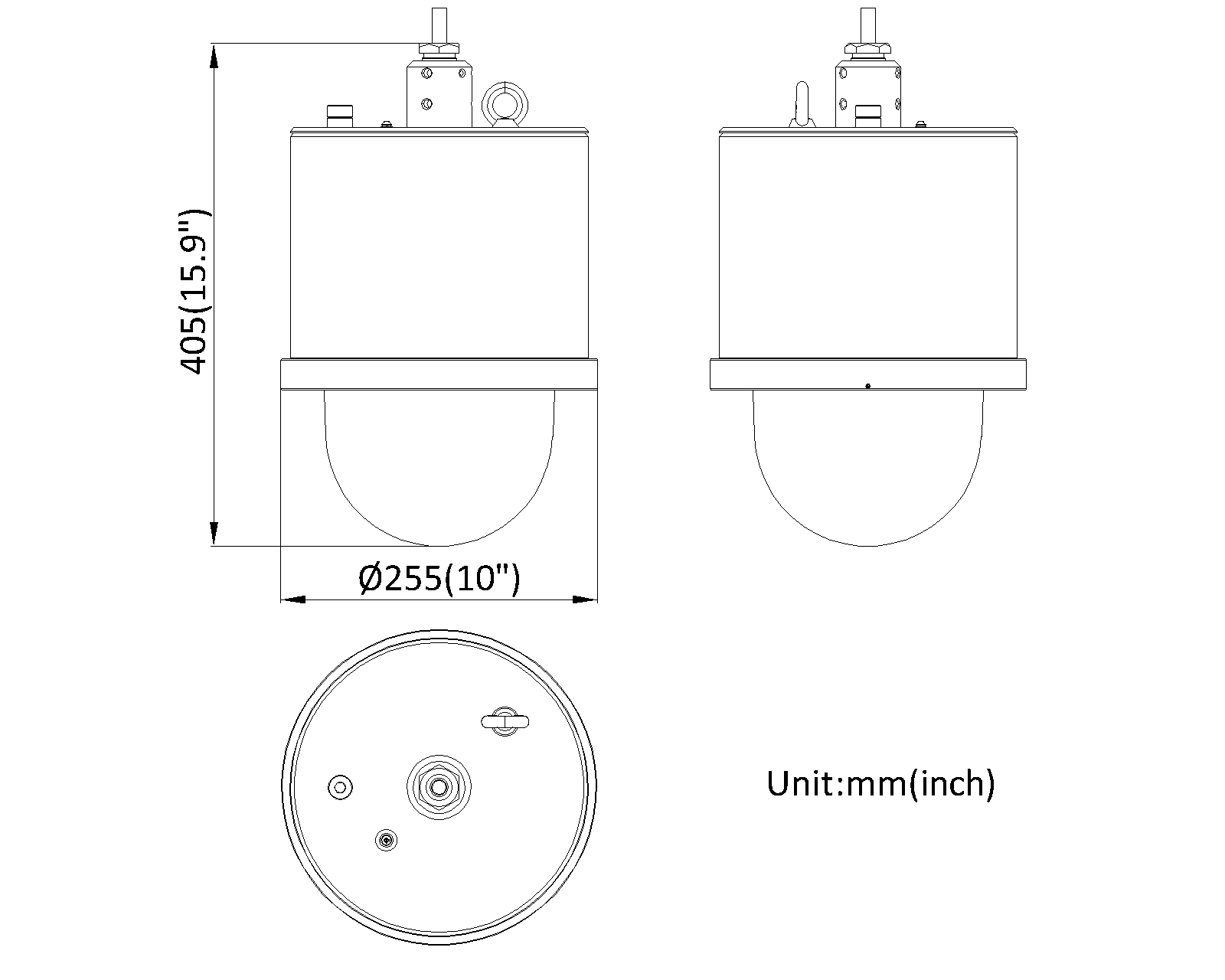

| Dydis | Φ 255 mm × 405 mm（Φ 10" × 15.9") |
| Svoris | 13.2 kg (29.11 lb.) |
| Medžiaga | SUS316L with anti-corrosion surface spray treatment |
| Darbo sąlygos | Temperature: -40°C to 60°C (-40°F to 140°F)，Humidity: ≤ 95% |
| Pagrindinės funkcijos | mirror,password protection,watermark,IP address filter |
