Kamera
| Sensorius | 1/2.7" Progressive Scan CMOS |
|---|---|
| Maks. rezoliucija | 2560 × 1440 |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Minimalus apšvietimas | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Diena&Naktis | IR cut filter |
Lęšis
| Lęšio tipas | Fixed focal lens, 2.8 and 4 mm optional |
|---|---|
| Židinio nuotolis ir FOV | 2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114° 4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85° |
| Lęšio montavimas | M12 |
| Rainelės tipas | Fixed |
| Diafragma | F1.6 |
PTZ
| Movement Range (Pan) | 0° to 345° |
|---|---|
| Movement Range (Tilt) | 0° to 80° |
| Pan greitis | Up to 25°/s |
| Tilt greitis | Up to 20°/s |
DORI
| DORI | 2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m 4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m |
|---|
Apšvietimas
| Papildomo apšviešimo tipas | IR,White Light |
|---|---|
| Papildomo apšvietimo diapazonas | Up to 30 m |
| Išmanus papildomas apšvietimas | Yes |
| IR bangos ilgis | 850 nm |
Tinklas
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK |
|---|
Vaizdas
| Pagrindinis srautas | 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
|---|---|
| Antrinis srautas | 50 Hz: 20 fps (768 x 432) 60 Hz: 20 fps (768 x 432) |
| Vaizdo suspaudimas | Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG |
| Vaizdo bitų dažnis | 32 Kbps to 8 Mbps |
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Bitų greičio kontrolė | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
Garso
| Garso tipas | Mono sound |
|---|---|
| Garso atrankos dažnis | 8 kHz/16 kHz |
| Pašalinių garsų šalinimas | Yes |
| Garso suspaudimas | G.711/AAC-LC |
| Garso bitų greitis | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
Tinklas
| Saugumas | Password protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
|---|---|
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| Protokolai | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP, SNMP |
| Naudotojas/prievadas | Up to 32 users 3 user levels: administrator, operator, and user |
| Klientas | iVMS-4200,Hik-Connect |
| Naršyklė | Local service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Mobile Communication
| Standartas | LTE-FDD,LTE-TDD |
|---|---|
| Dažnis | EU: LTE-FDD: B1/3/5/7/8/20/28 IN: LTE-FDD: B1/3/5/8 LTE-TDD: B34/38/39/40/41 LA: LTE-FDD: B2/3/4/5/7/8/28/66 NA: LTE-FDD: B2/4/5/12/13/17/66/71 |
| Uplink and Downlink Data Rate | EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps NA: uplink: 50 Mbps, downlink: 150 Mbps |
| SIM Card Type | Nano SIM |
Nuotrauka
| WDR | Digital WDR |
|---|---|
| SNR | ≥ 52 dB |
| Diena/Naktis režimas | Day,Night,Auto,Schedule |
| Nuotraukų pagražinimas | BLC,HLC,3D DNR |
| Nuotraukos nustatymai | Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Privatumo kaukė | 4 programmable polygon privacy masks |
Sąsaja
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|---|
| Vidinė atmintis | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Įmontuotas mikrofonas | 1 built-in microphone |
| Įmontuotas garsiakalbis | Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB. |
| Perkrovimo mygtukas | Yes |
Funkcijos
| Pagrindinės funkcijos | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
|---|---|
| Sąsaja | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, auto-tracking lite |
Pagrindinis

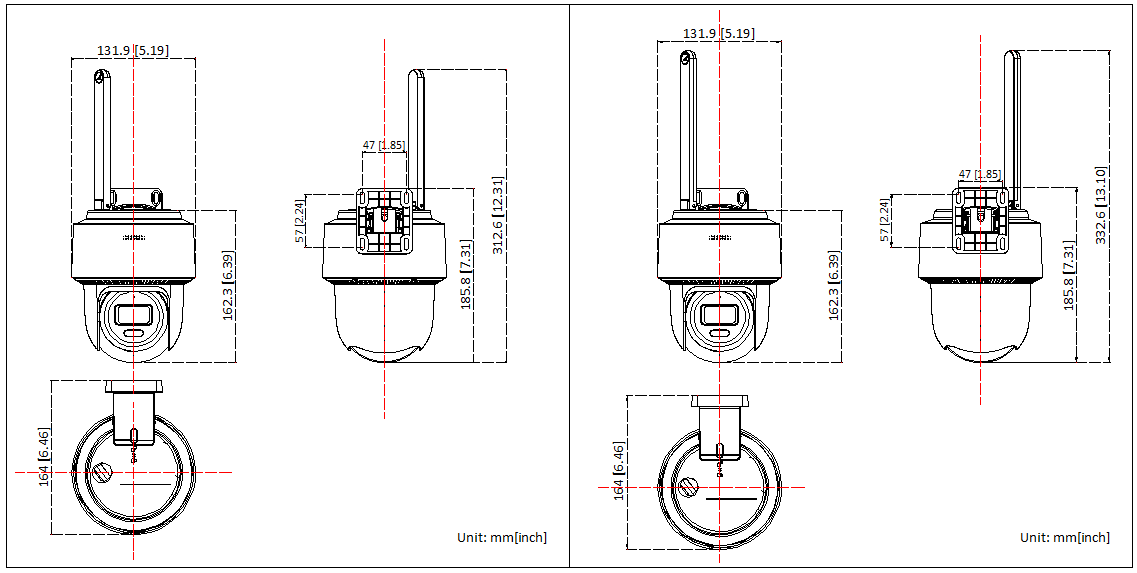

| Dydis | 131.9 mm × 164 mm × 312.6 mm (5.19" × 6.46" × 12.31") 131.9 mm × 164 mm × 332.6 mm (5.19" × 6.46" × 13.10") |
|---|
Pagrindinis
| Maitinimas | 12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection, *A switching adapter is included in the package. |
|---|---|
| Medžiaga | Plastic |
| Pakuotės dydis | 224 mm × 178 mm × 230 mm (8.82" × 7.01" × 9.06") |
| Svoris | Approx. 600 g (1.32 lb.) |
| Svoris su įpakavimu | Approx. 900 g (1.98 lb.) |
| Sandėliavimo sąlygos | -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing) |
| Darbo sąlygos | -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing) |
| Kalba | English, Ukrainian |
| Pagrindinės funkcijos | Heartbeat,anti-banding,mirror,password protection,password reset via email |
