Kamera
| Sensorius | 1/2.9" Progressive Scan CMOS |
|---|---|
| Maks. rezoliucija | 1920 × 1080 |
| Minimalus apšvietimas | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Kampo keitimas | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lęšis
| Lęšio tipas | Fixed focal lens, 2.8 and 4 mm optional |
|---|---|
| Židinio nuotolis ir FOV | 2.8 mm, horizontal FOV 104°, vertical FOV 58°, diagonal FOV 123° 4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 96° |
| Lęšio montavimas | M12 |
| Rainelės tipas | Fixed |
| Diafragama | F2.0 |
DORI
| DORI | 2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m 4 mm, D: 57 m, O: 22 m, R: 11 m, I: 5 m |
|---|
Apšvietimas
| Papildomo apšviešimo tipas | IR |
|---|---|
| Papildomo apšvietimo diapazonas | Up to 30 m |
| Išmanus papildomas apšvietimas | Yes |
| IR bangos ilgis | 850 nm |
Vaizdas
| Pagrindinis srautas | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
|---|---|
| Antrinis srautas | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Vaizdo suspaudimas | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Vaizdo bitų dažnis | 32 Kbps to 8 Mbps |
| H.264 tipas | Baseline Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| Bitų greičio kontrolė | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
Garsas
| Garso tipas | -U: Mono sound |
|---|---|
| Pašalinių garsų šalinimas | -U: Yes |
| Garso atrankos dažnis | -U: 8 kHz/16 kHz |
| Garso suspaudimas | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Garso bitų greitis | -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
Internetas
| Saugumas | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|---|---|
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK |
| Protokolai | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Naudotojas/prievadas | Up to 32 users 3 user levels: administrator, operator, and user |
| Klientas | iVMS-4200, Hik-Connect |
| Naršyklė | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
Nuotrauka
| WDR | Digital WDR |
|---|---|
| SNR | ≥ 52 dB |
| Diena/Naktis režimas | Day, Night, Auto, Schedule |
| Nuotraukų pagražinimas | BLC, HLC, 3D DNR |
| Nuotraukos nustatymai | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privatumo kaukė | 4 programmable polygon privacy masks |
Sąsaja
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|---|
| Vidinė atmintis | -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Įmontuotas mikrofonas | -U: Yes |
| Perkrovimo mygtukas | -F: Yes |
Funkcijos
| Pagrindinės funckcijos | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
|---|---|
| Sąsaja | Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture |
Pagrindinis
| Sistemos parametrai | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
|---|---|
| Medžiaga | Metal & Plastic |

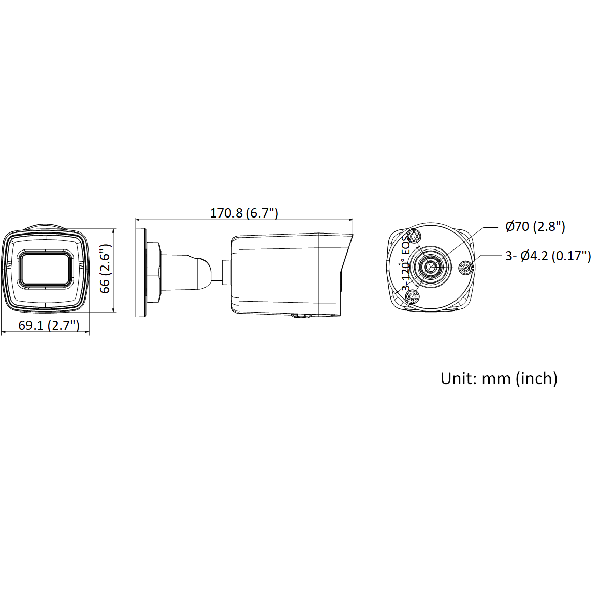

| Dydis | 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
| Pakuotės dydis | 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") |
| Svoris | -I: Approx. 265 g (0.6 lb.); -IUF: Approx. 285 g (0.6 lb.) |
| Svoris su įpakavimu | -I: Approx. 495 g (1.1 lb.); -IUF: Approx. 510 g (1.1 lb.) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Kalba | English, Ukrainian |
| Pagrindinės funkcijos | Heartbeat, anti-banding, mirror, password protection, password reset via email |
