Garsas
| Garso bitų dažnis | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|---|---|
| Garso suspaudimas | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Garso atrankos dažnis | 8 kHz/16 kHz |
| Garso tipas | Mono sound |
| Pašalinių garsų šalinimas | Yes |
Camera
| Kampo keitimas | Pan: -170° to 170°,tilt: 0° to 80° |
|---|---|
| Diena&Naktis | IR cut filter |
| Vaizdo jutiklis | 1/1.8" Progressive Scan CMOS |
| Didžiausia raiška | 2560 × 1440 |
| Minimalus apšvietimas | Color: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Užrakto greitis | 1 s to 1/100,000 s |
DORI
| DORI | 2.8 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m 4 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m |
|---|
Funkcijos
| Pagrindiniai įvykiai | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
|---|---|
| Sąsaja | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger capture |
Bendra informacija

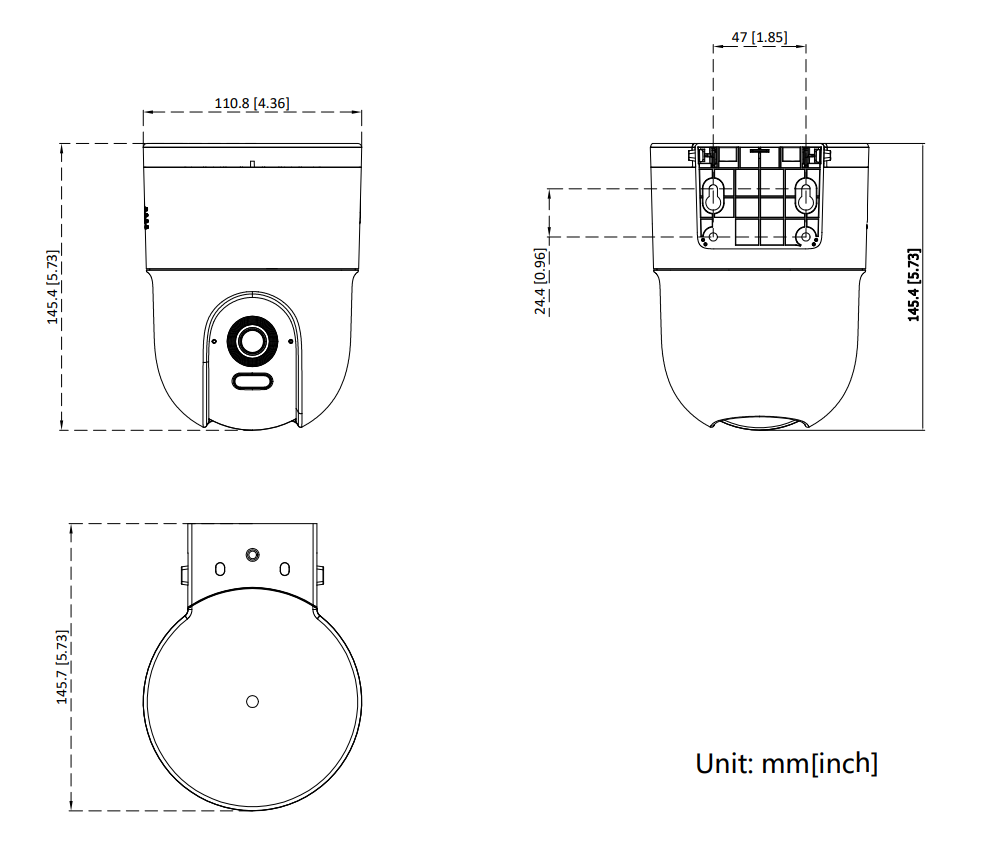

| Matmenys | Ø110.8 mm × 145.4 mm (Ø4.36" × 5.73") |
|---|---|
| Flashing Light | Red and Blue Light,White Light |
| Pagrindinės funkcijos | Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding |
| Kalba | English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German |
| Medžiaga | Front cover: Plastic, body: Plastic, bracket: Plastic |
| Pakuotės dydis | 185 mm × 145 mm × 198 mm (7.28" × 5.71" × 7.8") |
| Maitinimas | 12 VDC ± 15%, 0.84 A, max. 10 W, PoE: af, Class 3, max. 12 W |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Svoris | Approx. 650 g (1.43 lb.) |
| Svoris su įpakavimu | Approx. 850 g (1.87 lb.) |
Apšvietimas
| IR bangos ilgis | 850 nm |
|---|---|
| Išmanus papildomas apšvietimas | Yes |
| Papildomo apšvietimo diapazonas | Up to 30 m |
| Papildomo apšviešimo tipas | IR,White Light |
Nuotrauka
| Dienos/nakties perjungiklis | Day,Night,Auto,Schedule |
|---|---|
| Nuotraukų pagražinimas | BLC,HLC,3D DNR |
| Nuotraukos parametrų keitiklis | Yes |
| Vaizdo nustatymai | saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Privatumo kaukė | 4 programmable polygon privacy masks |
| SNR | ≥ 52 dB |
| WDR | 120 dB |
Sąsaja
| Integruotas mikrofonas | Yes,1 built-in microphone |
|---|---|
| Integruotas garsiakalbis | Yes |
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė atmintis | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Perkrovimo mygtukas | Yes |
Objektyvas
| Diafragma | F1.0 |
|---|---|
| Ryškumo gylis | 2.8 mm: 2.3 m to ∞ 4 mm: 2.7 m to ∞ |
| Židinio nuotolis ir FOV | 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 120° 4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102° |
| Rainelės tipas | Fixed |
| Objektyvo tvirtinimas | M16 |
| Objektyvo tipas | Fixed focal lens, 2.8 and 4 mm optional |
Tinklas
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
|---|---|
| Klientas | iVMS-4200,Hik-Connect |
| Protokolai | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP |
| Sauga | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| Naudotojas/prievadas | Up to 32 users 3 user levels: administrator, operator, and user |
| Naršyklė | Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+ |
Vaizdas
| Bitų dažnio valdymas | CBR,VBR |
|---|---|
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Pagrindinis srautas | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Antrinis srautas | 50 Hz: 25 fps (768 × 432, 640 × 360) 60 Hz: 24 fps (768 × 432, 640 × 360) |
| Vaizdo bitų dažnis | 32 Kbps to 16 Mbps |
| Vaizdo suspaudimas | Main stream: H.265+/H.265/H.264+/H.264,, Sub-stream: H.265/H.264/MJPEG |
