Kamera
| Sensorius | 1/2.8" Progressive Scan CMOS |
|---|---|
| Maks. rezoliucija | 1920 × 1080 |
| Minimalus apšvietimas | Color: 0.001 Lux @ (F1.0, AGC ON) |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Kampo keitimas | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lęšis
| FOV | 2.8mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127° 4mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99° |
|---|---|
| Lęšio montavimas | M12 |
| Rainelės tipas | Fixed |
| Diafragama | F1.0 |
| Ryškumo gylis | 2.8 mm: 1.7 m to ∞ 4 mm: 2.1 m to ∞ |
| Lęšio tipas | Fixed focal lens, 2.8 and 4 mm optional |
Apšvietimas
| Papildomo apšviešimo tipas | White Light |
|---|---|
| Papildomo apšvietimo diapazonas | Up to 30 m |
| Išmanus papildomas apšvietimas | Yes |
Vaizdas
| Pagrindinis srautas | 50 Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|---|---|
| Antrinis srautas | 50 Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Vaizdo suspaudimas | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Vaizdo bitų dažnis | 32 Kbps to 8 Mbps |
| H.264 tipas | BaseLine Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| ROI | 1 fixed region for main stream |
Tinklas
| Protokolai | TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS |
|---|---|
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Naudotojas/prievadas | Up to 32 users. 3 user levels: administrator, operator and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF |
| Klientas | iVMS-4200, Hik-Connect, Hik-Central |
| Naršyklė | Plug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+ |
Nuotrauka
| Nuotraukos nustatymai | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
|---|---|
| Diena/Naktis režimas | Day, Night, Auto, Schedule |
| WDR | Digital WDR |
| Nuotraukų pagražinimas | BLC, HLC, 3D DNR |
Sąsaja
| Interneto sąsaja | 1 RJ45 10M/100M self-adaptive Ethernet port |
|---|
Funkcijos
| Pagrindinės funckcijos | Motion detection, exception (illegal login) |
|---|---|
| Sąsaja | Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture *Note: External device is required. |
Pagrindinis
| Maitinimas | 12 VDC ± 25%, 0.30 A, max. 3.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Type 1 Class 3, 36 V to 57 V, 0.20 A to 0.10 A, max. 4.5W |
|---|---|

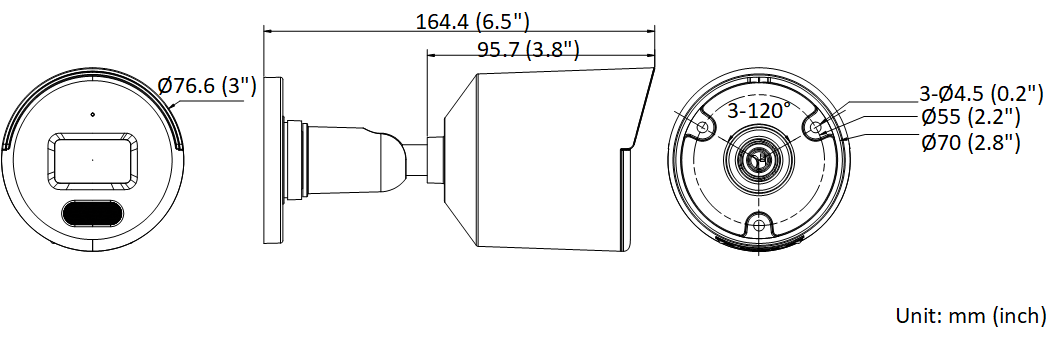

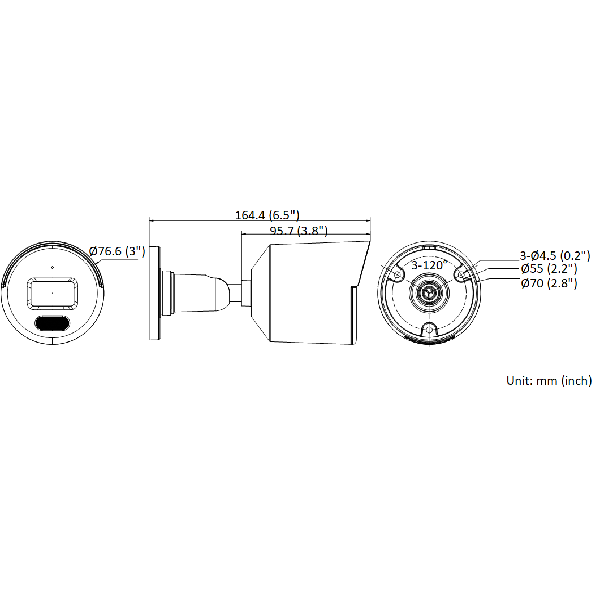

| Dydis | 68.4 × 65.2 × 161.1 mm (2.7" × 2.6" × 6.3") |
| Pakuotės dydis | 172 × 104 × 80 mm (6.8" × 4.1" × 3.1") |
| Svoris su įpakavimu | Approx. 510g (1.1 lb.) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Kalba | English |
| Pagrindinės funkcijos | Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
