Garsas
| Garso bitų dažnis | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|---|---|
| Garso suspaudimas | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Garso atrankos dažnis | 8 kHz/16 kHz/32 kHz/48 kHz |
| Pašalinių garsų šalinimas | Yes |
Camera
| Kampo keitimas | Channel 1: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°, Channel 2: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
|---|---|
| Diena&Naktis | Channel 1: IR cut filter, Channel 2: IR cut filter |
| Vaizdo jutiklis | Channel 1: 1/3" Progressive Scan CMOS, Channel 2: 1/3" Progressive Scan CMOS |
| Didžiausia raiška | Channel 1: 2688 × 1520, Channel 2: 2688 × 1520 |
| Minimalus apšvietimas | Channel 1: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR, Channel 2: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Užrakto greitis | 1/3 s to 1/100,000 s |
DORI
| DORI | Channel 1: 2.8 mm, D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m 4 mm, D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m Channel 2: 2.8 mm, D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m 4 mm, D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m |
|---|
Išmaniosios funkcijos
| Perimetro apsauga | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
|---|
Funkcijos
| Pagrindiniai įvykiai | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
|---|---|
| Sąsaja | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light flashing |
Bendroji informacija

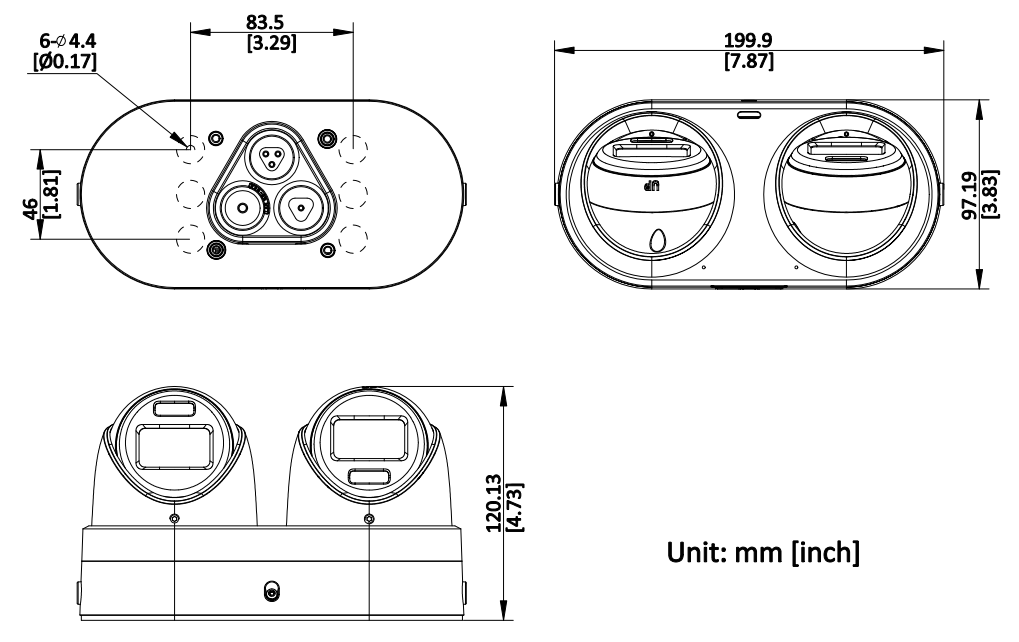

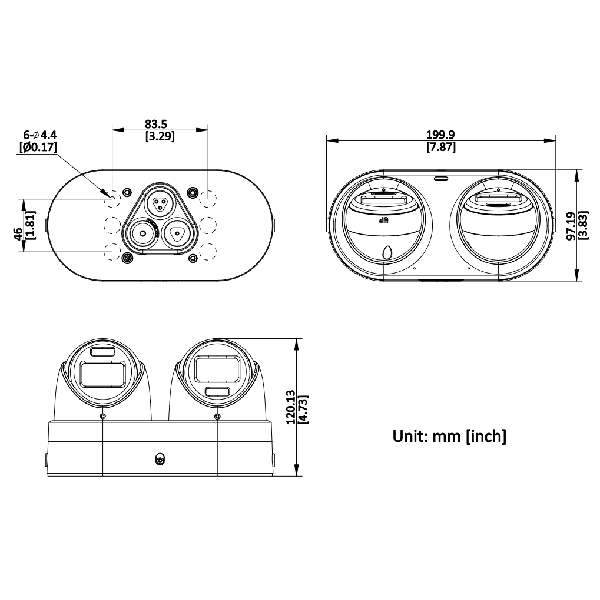

| Matmenys | 199.9 mm × 120.1 mm × 97.2 mm (7.87" × 4.73" × 3.83") |
|---|---|
| Flashing Light | White Light |
| Pagrindinės funkcijos | Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding |
| Kalba | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Medžiaga | Metal |
| Pakuotės dydis | 305 mm × 162 mm × 165 mm (12.01" × 6.38" × 6.5") |
| Galia | 12 VDC ± 25%, 1.42 A, max. 17 W,two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Svoris | Approx. 1215 g (2.7 lb.) |
| Svoris su įpakavimu | Approx. 1582 g (3.5 lb.) |
Apšvietimas
| IR bangos ilgis | 850 nm |
|---|---|
| Išmanus papildomas apšvietimas | Yes |
| Papildomo apšvietimo diapazonas | IR: up to 40 m White Light: up to 40 m |
| Papildomo apšviešimo tipas | IR,White Light |
Nuotrauka
| Dienos/nakties perjungiklis | Day,Night,Auto,Schedule |
|---|---|
| Nuotraukų pagražinimas | BLC,HLC,3D DNR |
| Nuotraukos parametrų keitiklis | Yes |
| Vaizdo nustatymai | Rotate mode |
| Privatumo kaukė | 8 programmable polygon privacy masks |
| SNR | ≥ 52 dB |
| WDR | 120 dB |
Sąsaja
| Alarm | 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
|---|---|
| Garsas | Built-in Microphone: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Integruotas garsiakalbis | 1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 110 dB. |
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė atmintis | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Perkrovimo mygtukas | Yes |
Objektyvas
| Diafragma | F1.6 |
|---|---|
| Ryškumo gylis | 2.8 mm: 1.2 m to ∞ 4 mm: 1.5 m to ∞ |
| Židinio nuotolis ir FOV | Channel 1: 2.8 mm, horizontal FOV 99.3°, vertical FOV 52.9°, diagonal FOV 120.2° 4 mm, horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0° Channel 2: 2.8 mm, horizontal FOV 99.3°, vertical FOV 52.9°, diagonal FOV 120.2° 4 mm, horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0° |
| Rainelės tipas | Fixed |
| Objektyvo tvirtinimas | Ø14 |
| Objektyvo tipas | Channel 1: Varifocal lens, motorized lens, 2.8 mm and 4 mm, Channel 2: Varifocal lens, motorized lens, 2.8 mm and 4 mm |
Tinklas
| API | ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP |
|---|---|
| Klientas | iVMS-4200,Hik-Connect,Hik-Central |
| Vidinė atmintis | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Saugumas | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| Naudotojas/prievadas | Up to 32 users 3 user levels: administrator, operator, and user |
| Naršyklė | Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
Vaizdas
| Bitų dažnio valdymas | CBR,VBR |
|---|---|
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Pagrindinis srautas | Channel 1 & Channel 2: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream and third Stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Antrinis srautas | Channel 1 & Channel 2: 50 Hz: 25 fps (768 × 432,640 × 360) 60 Hz: 30 fps (768 × 432,640 × 360) |
| Tikslinis apkarpymas | Yes |
| Trečias srautas | Channel 1 & Channel 2: 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Vaizdo bitų dažnis | 32 Kbps to 16 Mbps |
| Vaizdo suspaudimas | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. |
