Garsas
| Garso bitų dažnis | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps(MP3) |
|---|---|
| Garso suspaudimas | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 |
| Garso atrankos dažnis | 8 kHz/16 kHz |
| Garso tipas | Mono sound |
| Pašalinių garsų šalinimas | Yes |
Camera
| Kampo keitimas | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
|---|---|
| Diena&Naktis | IR cut filter |
| Vaizdo jutiklis | 1/3" Progressive Scan CMOS |
| Didžiausia raiška | 2560 × 1440 |
| Minimalus apšvietimas | Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
| Užrakto greitis | 1 s to 1/100,000 s |
DORI
| DORI | 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m |
|---|
Funkcijos
| Pagrindiniai įvykiai | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
|---|---|
| Sąsaja | Upload to FTP,notify surveillance center,send email,trigger recording,trigger capture |
Bendra informacija

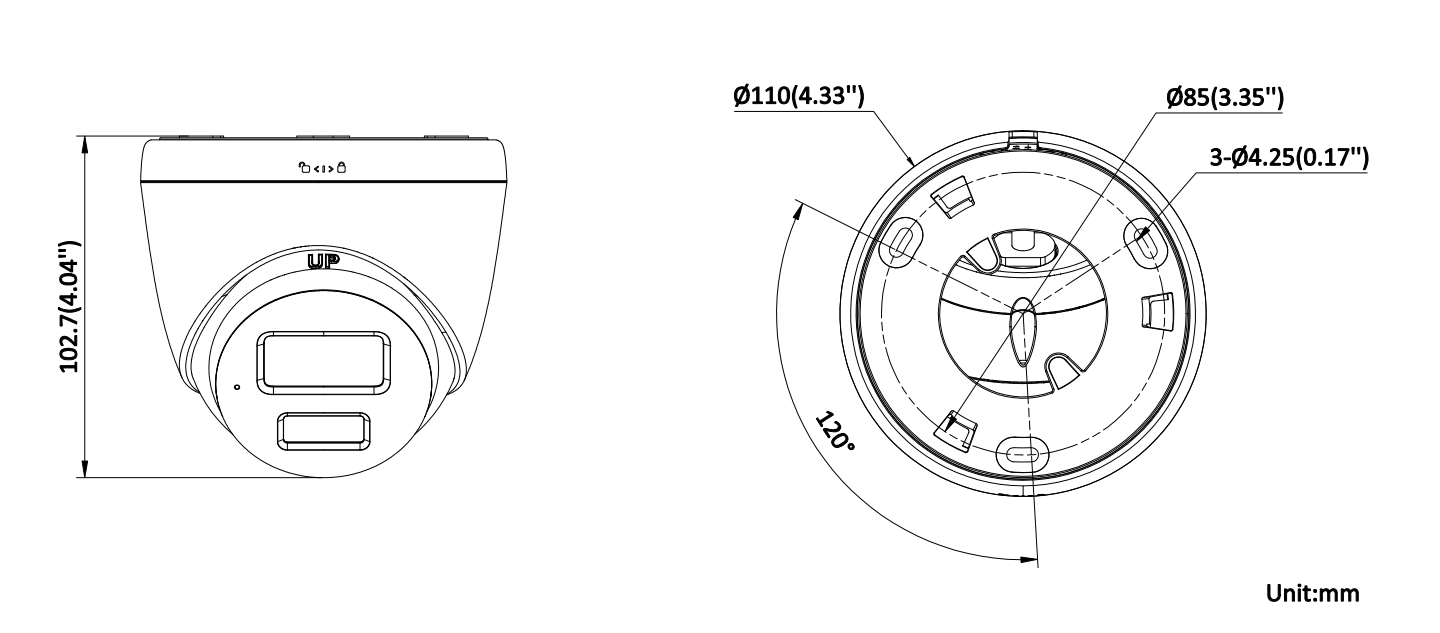

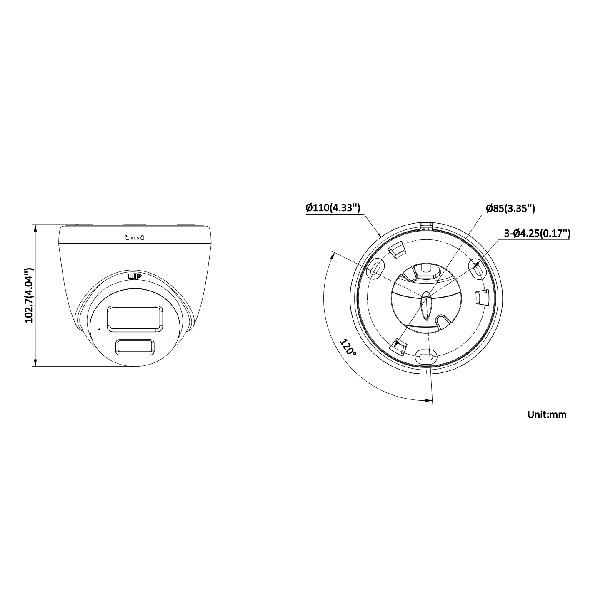

| Matmenys | Ø110 mm × 102.7 mm (Ø4.3" × 4.0") |
|---|---|
| Flashing Light | -LIU、-LIUF：NA -LIU(F)/SL：White Light -LIU(F)/SRB：Red and Blue Light |
| Pagrindinės funkcijos | Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding |
| Kalba | English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German |
| Medžiaga | Cover: Plastic, main body: Metal |
| Pakuotės dydis | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Maitinimas | -LIU/-LIUF: 12 VDC ± 25%, 0.52 A, max. 6.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W, -LIU/S(L)(RB)、-LIUF/S(L)(RB): 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.8 W |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Svoris | -LIU: Approx. 365g (0.8 lb.) -LIUF: Approx. 380g (0.8 lb.) -LIU/S(L)(RB): Approx. 400g (0.9 lb.) -LIUF/S(L)(RB): Approx. 405g (0.9 lb.) |
| Svoris su įpakavimu | -LIU: Approx. 550g (1.2 lb.) -LIUF: Approx. 575g (1.3 lb.) -LIU/S(L)(RB): Approx. 590g (1.3 lb.) -LIUF/S(L)(RB): Approx. 600g (1.3 lb.) |
Apšvietimas
| IR bangos ilgis | 850 nm |
|---|---|
| Išmanus papildomas apšvietimas | Yes |
| Papildomo apšvietimo diapazonas | Up to 30 m |
| Papildomo apšviešimo tipas | IR,White Light |
Nuotrauka
| Dienos/nakties perjungiklis | Day,Night,Auto,Schedule |
|---|---|
| Nuotraukų pagražinimas | BLC,HLC,3D DNR |
| Vaizdo nustatymai | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Privatumo kaukė | 4 programmable rectangular privacy masks |
| SNR | ≥ 52 dB |
| WDR | 120 dB |
Sąsaja
| Integruotas mikrofonas | Yes,1 built-in microphone |
|---|---|
| Integruotas garsiakalbis | -LIU、-LIUF: NA -LIU/S(L)(RB)、-LIUF/S(L)(RB): Max. power consumption: 2 W, max. sound pressure level: 10 cm: 101 dB |
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė atmintis | -LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Perkrovimo mygtukas | -LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：YES |
Objektyvas
| Diafragma | F1.0 |
|---|---|
| Ryškumo gylis | 2.8 mm: 1.7 m to ∞ 4 mm: 1.6 m to ∞ |
| Židinio nuotolis ir FOV | 2.8 mm, horizontal FOV 101.5°, vertical FOV 54.6°, diagonal FOV 122.1° 4 mm, horizontal FOV 84.1°, vertical FOV 45.6°, diagonal FOV 99.1° |
| Rainelės tipas | Fixed |
| Objektyvo tvirtinimas | M12 |
| Objektyvo tipas | Fixed focal lens, 2.8 and 4 mm optional |
Tinklas
| API | ONVIF (Profile S, Profile G),ISAPI,SDK |
|---|---|
| Klientas | iVMS-4200;Hik-Connect |
| Protokolai | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP |
| Sauga | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| Naudotojas/prievadas | Up to 32 users 3 user levels: administrator, operator, and user |
| Naršyklė | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11 Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Vaizdas
| Bitų dažnio valdymas | CBR,VBR |
|---|---|
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Pagrindinis srautas | 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Antrinis srautas | 50 Hz: 25 fps (1280 × 720,640 × 480,640 × 360) 60 Hz: 24 fps (1280 × 720,640 × 480,640 × 360) |
| Vaizdo bitų dažnis | 32 Kbps to 16 Mbps |
| Vaizdo suspaudimas | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
