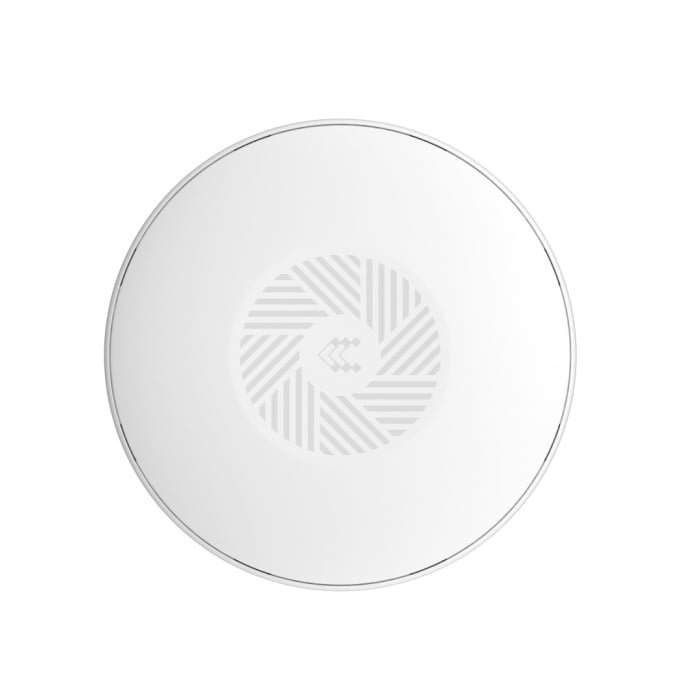

Bendra informacijaBelaidžio ryšio standartai802.11b/g/n/ac/ax (Wi-Fi 6), dual band with speeds up to 2402 Mbps (5 GHz) and 576 Mbps (2.4 GHz), MU-MIMOWireless modesAccess Point (AP), Station (STA)Wireless roaming technologies802.11r fast transition, 802.11k radio resource measurement, 802.11v BSS transition managementWireless mesh802.11s wireless mesh networkingWi-Fi saugumasWPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP; 802.11w Protected Management Frames (PMF)SSID featuresSSID stealth mode, MAC-based access controlMaximum wireless usersUp to 512 simultaneous connectionsWireless MAC filteringAllowlist and blocklistWireless QR code connectionQR code generator allowing automatic connection without manual loginTravelMateForwards Wi-Fi hotspot landing page to subsequent connected devicesEthernet prievadas1 × RJ45 port, 100/1000/2500 MbpsEthernet standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3az with auto MDI/MDIXTinklo protokolaiTCP, UDP, ICMP, GRE, ESP, RIP, OSPF, BGP, IPsec, IPv4, IPv6, ARP, PPP, HTTP, HTTPSRyšio stebėsenaPing reboot, Wget reboot, periodic reboot, LCP and ICMP link inspectionDNS securityDNS over HTTPS proxyHotspot standardHotspot 2.0 for seamless and secure automatic Wi-Fi connectionTraffic managementReal-time monitoring, wireless signal charts, traffic usage historyAuthentication methodsSSH key-based authentication, HTTPS, CLI access control, login attempt blocking, time-based login blocking, random password generatorVLAN supportTag-based VLAN separationPrieigos valdymasAccess control for SSH, Web UI, CLI and TelnetCertificate managerSupports CA, server, client, Let’s Encrypt and SCEP certificates802.1X supportPort-based network access control clientData to server protocolsHTTP(S), MQTT, Azure MQTTData to server featuresData collection from multiple sources and protocols with custom LUA scriptingAPI supportTeltonika Networks Web API (beta)Valdymo sąsajaWeb UI (HTTP/HTTPS), CLI, event logs, firmware update notificationsRemote managementTeltonika Remote Management System (RMS)Firmware updatesFOTA updates from server with automatic notificationSSH palaikymasSSH v1 and v2El. pašto įspėjimaiService status notifications via emailManagement APIJSON-RPC over HTTP/HTTPSWi-Fi scannerDetects nearby wireless devices and networksCPUMediatek dual-core 1.3 GHzRAM512 MB DDR3Flash storage16 MB SPI NOR Flash, 512 MB SPI NAND FlashOperacinė sistemaRutOS (OpenWrt-based Linux OS)Supported programming languagesBusyBox shell, Lua, C, C++Kūrėjo įrankiaiSDK package with build environmentĮrangos tinkinimasGPL-based firmware customization including branding and web interface changesMaitinimo įvestis44.0–57.0 V DC via PoEPoE standardIEEE 802.3af PoE Class 3Energijos sąnaudosIdle <7 W, maximum <11 WEthernet interfaces1 × RJ45 100/1000/2500 MbpsBūsenos LED indikatoriai1 × Power LED (configurable via Web UI)Antena3 × internal dual-band antennasAntenna frequency range2400–2500 MHz and 5150–5850 MHzAntenos stiprinimas<4.33 dBi (2.4 GHz), <4.9 dBi (5 GHz), omnidirectionalReset optionsReboot, user default reset, factory reset buttonKorpusų medžiagaUV-stabilized plastic and aluminumMatmenysØ 158 mm × 31.4 mmSvoris285 gMontavimasCeiling mounting bracket for access point installationDarbinė temperatūra0 °C to 50 °CDarbinė drėgmė10–90% non-condensingApsaugos nuo dulkių ir drėgmės klasėIP30Reguliavimo patvirtinimaiCE, UKCA, CB, EAC, UCRF, RCM, FCC, IC, WEEEEMC standartaiEN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4RF standardsEN 300 328 V2.2.2, EN 300 893 V2.1.1, EN 300 440 V2.2.1Saugos standartaiIEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020Pakuotės turinysAccess Point TAP400, Quick Start Guide, Wi-Fi information sticker, packaging box
