| Event Type | Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, area status change detection, line crossing target detection, line crossing target counting, OCR trigger, full analysis rule, combined rule |
|---|
| Model Specification | Model type for AI Open Platform trained algorithm loading: high-performance model (small model), enhanced high-performance model (hybrid small-large model), and ultra-high-precision model (large model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 1 target. The device runs up to 2 small models or 1 large model at the same time. |
|---|
| Rule Setting | Up to 16 rules. Supports moving target filtering and shield region setting. |
|---|
| Task Type | Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications), OCR, Segmentation, Image Comparison. Supports simultaneous independent operation of 2 models. Supports video analysis and image analysis. Algorithm type for AI Open Platform enhanced high-performance model (hybrid small-large model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications). Supports video real-time analysis. Algorithm type for AI Open Platform ultra-high-precision model (large model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications), OCR. Supports image scheduled analysis and I/O-triggered analysis. Supports algorithm orchestration for comparison. Supports importing user-defined orchestration packages (3 operator nodes, 5 logic nodes) for scenario-based application deployment. |
|---|
| Garso bitų dažnis | 64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1) |
|---|
| Garso glaudinimas | G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM |
|---|
| Garso atrankos dažnis | 8 kHz,16 kHz,32 kHz,48 kHz |
|---|
| Pašalinių garsų šalinimas | Yes |
|---|
| Diena&Naktis | [Bullet channel] Color, [PTZ channel] IR cut filter |
|---|
| Vaizdo jutiklis | [Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS |
|---|
| Didžiausia raiška | [Bullet channel] 2688 × 1520, [PTZ channel] 2688 × 1520 |
|---|
| Minimalus apšvietimas | [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON) |
|---|
| Užrakto greitis | 1/25 s to 1/30000 s |
|---|
| Lėtas užraktas | Yes |
|---|
| Priartinimas | [PTZ channel] 25 × optical, 16 × digital |
|---|
| Veido atpažinimas | Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures |
|---|
| Face Comparison | Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library |
|---|
| Multi-Target-Type Detection | Supports simultaneous detection and capture of human body, face and vehicle |
|---|
| People Density | Supports detecting the level of people density in the configured area,[PTZ channel]: no, [Panoramic channel]: yes |
|---|
| Kelių eismo ir transporto priemonių aptikimas | Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode |
|---|
| Pagrindinės funkcijos | [PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception |
|---|
| Sąsaja | [Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) |
|---|
| Išmaniosios funkcijos | unattended baggage detection,object removal detection |
|---|
| Rasos šalinimas | Yes |
|---|

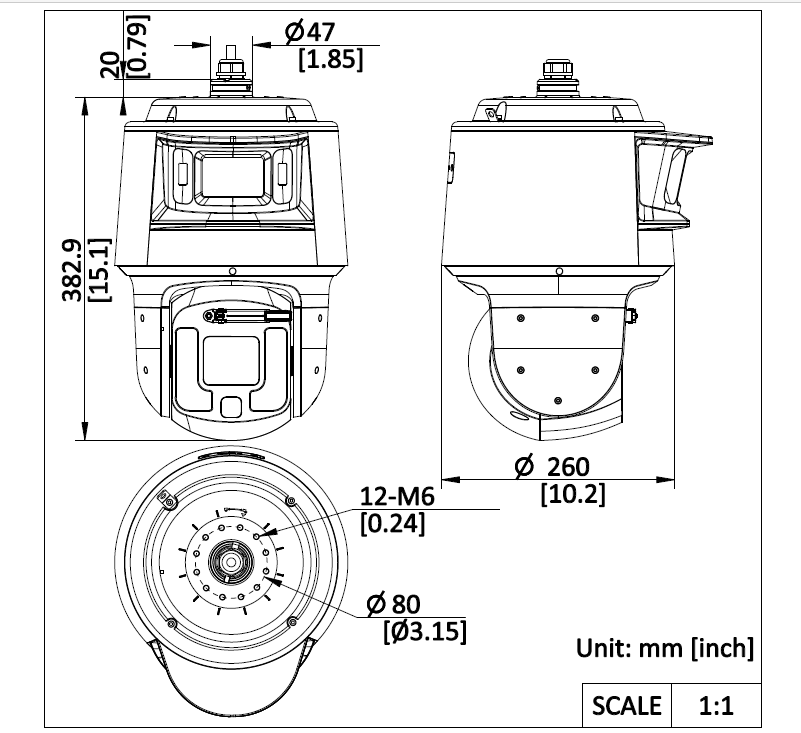

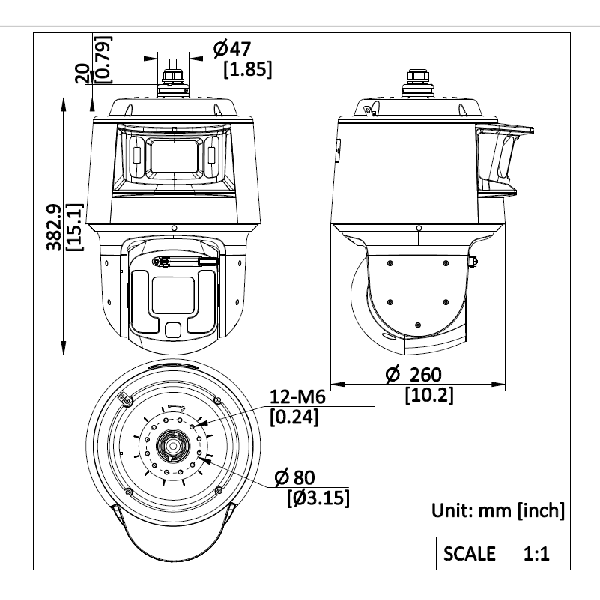

| Matmenys | Ø260 mm × 382.9 mm (Ø10.24" × 15.07") |
|---|
| Pagrindinės funkcijos | mirror,password protection |
|---|
| Kalba | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|---|
| Medžiaga | ADC12 |
|---|
| Darbo sąlygos | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing) |
|---|
| Maitinimas | 36 VDC± 25%, max. 90 W (Max. 65 W, including max. 15 W for IR and max. 8 W for heater), PoE 802.3bt, type4, class8, max. 90W (Max. 65W, including max. 15W for IR and max. 8 W for heater) |
|---|
| Svoris | Approx. 7.8 kg (17.196 lb.) |
|---|
| Wiper | Yes |
|---|
| Dienos/nakties perjungiklis | schedule,Day,auto,night |
|---|
| Rūko šalinimas | Digital defog |
|---|
| Nuotraukų pagražinimas | 3D DNR,HLC,BLC,EIS |
|---|
| Nuotraukos parametrų keitiklis | Yes |
|---|
| Vaizdo nustatymai | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|---|
| Vaizdo stabilizavimas | EIS (Built-in gyroscope to improve EIS performance) |
|---|
| Privatumo kaukė | [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
|---|
| Regioninė ekspozicija | Yes |
|---|
| Regioninis fokusavimas | [Bullet channel] No, [PTZ channel] Yes |
|---|
| SNR | ≥ 52 dB |
|---|
| WDR | [Bullet channel] 120 dB, [PTZ channel] 150 dB |
|---|
| Signalizacija | 7 input(s), 2 output(s) |
|---|
| Garsas | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
|---|
| Interneto sąsaja | 1 RJ45 100M self-adaptive Ethernet port |
|---|
| Saugyklos vieta | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB . |
|---|
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
|---|
| Perkrovimas | Yes |
|---|
| Perimetro apsauga | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras VCA range: [Bullet channel] up to 60m(nighttime)/100m(daytime), [PTZ channel] Wide: up to 70m(nighttime)/100m(daytime), Tele: up to 400m *Result based on standard setup and test environment |
|---|
| Scenario-Aware Object Detection | This function is based on the large model technology combined with image classification detection. It can automatically detect and identify scene categories in the detection area, including road, intersection, toll station, petrol station, open-air square, vehicle entrance and exit, and person entrance and exit, etc. The PTZ camera will rotate 360° to capture and label the scenes.For automatically recognize the scene information of captured image.- Real-time detection mode: the PTZ camera completes the full-scene capture, detection, and recognition output within 10 minutes in 360°.- Scheduled detection mode: the scheduled time can be set, and pictures can be collected every day or week. The collected pictures will be stored in eMMC, and the detection results will be output at 2 AM by default.The detection results and labels can be uploaded as alarms, and the alarm should include the camera IP address, port No., channel No., capture time, upload time, picture, PTZ coordinates, label ID, label name, and OCR information, as well as the coordinates of each OCR. |
|---|
| Object Tracking | Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded. |
|---|
| Išmani jungtis | Manual tracking, auto tracking, tracking takeover, linked tracking capture |
|---|
| Išmanus sekimas | Manual tracking, auto-tracking 3.0 |
|---|
| API | ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP |
|---|
| Klientas | iVMS-4200,HikCentral Pro,Hik-Connect |
|---|
| Vidinė atmintis | NAS (NFS, SMB/CIFS),auto network replenishment (ANR) |
|---|
| Protokolai | IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP |
|---|
| Sauga | Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2 |
|---|
| Tiesioginis vaizdo žiūrėjimas | Up to 20 channels |
|---|
| Naudotojas/prievadas | Up to 32 users. 3 user levels: administrator, operator, and user |
|---|
| Naršyklė | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|---|
| 3D pozicija | Yes |
|---|
| Movement Range (Pan) | [PTZ channel] 0° to 360° |
|---|
| Movement Range (Tilt) | [Bullet channel] 7° to 17°, [PTZ channel] -20° to 90° |
|---|
| PTZ būsenos vaizdavimas | Yes |
|---|
| Pan greitis | [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s |
|---|
| Park Action | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan |
|---|
| Patruliavimas | 8 patrols, up to 32 presets for each patrol |
|---|
| Išsaugotų rėžimų skenavimas | 4 pattern scans, record time over 10 minutes for each scan |
|---|
| Išjungimo atmintis | Yes |
|---|
| Išsaugotų nustatymų sustabdymas | Yes |
|---|
| Iš anksto išsaugoti nustatymai | 300 |
|---|
| Proporcingas Pan | [Bullet channel] No, [PTZ channel] Yes |
|---|
| Užduočių grafikas | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output |
|---|
| Tilt greitis | [Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
|---|
| H.264 tipas | Baseline profile,Main profile,High profile |
|---|
| H.265 tipas | Main profile |
|---|
| Pagrindinis srautas | [Bullet channel] 50 Hz: 25 fps (2688*1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720), 60 Hz: 25 fps (2688*1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720),[PTZ channel] 50 Hz: 30 fps (2688*1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720), 60 Hz: 30 fps (2688*1520，2560 × 1440，1920 × 1080，1280 × 960，1280 × 720) |
|---|
| Region of Interest (ROI) | 8 fixed regions for each stream |
|---|
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
|---|
| Antrinis srautas | [Bullet channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 25 fps (704 × 576，640 × 480，352 × 288),[PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 576，640 × 480，352 × 288) |
|---|
