AcuSearch
| Pagal kamerą | All channels *: The camera should enable AcuSearch function |
|---|
AcuSeek
| Našumas | If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 50,000 targets/day. |
|---|---|
| Search Language | English |
Sąsajos
| Ispėjamojo signalo įvestis/išvestis | 4/1 |
|---|---|
| Talpa | Up to 16 TB capacity for each HDD |
| SATA | 2 SATA interfaces |
| USB sąsaja | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
Sertifikavimas
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
|---|---|
| Sertifikatai | CE,CB,REACH,WEEE,UKCA,RCM,IC |
Iškodavimas
| Garso glaudinimas | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
|---|---|
| Iškodavimo pajėgumas | AI on: 12-ch@1080p (30 fps) AI off: 24-ch@1080p (30 fps) |
| Vaizdo iškodavimo formatas | H.265, H.265+, H.264, H264+ |
| Įrašymo raiška | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Srauto tipas | Video, Video & Audio |
| Sinchroninis atkūrimas | 8-ch |
Veido atpažinimas
| Veido nuotraukos palyginimas | 8-ch |
|---|---|
| Veido paveikslų biblioteka | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 800 MB) |
| Veido aptikimas ir analizė | Face picture comparison, human face capture, face picture search |
| Veido aptikimas ir analizės našumas | Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch |
Bendra informacija
| Energijos sunaudojimas | ≤ 15 W (without HDD) |
|---|---|

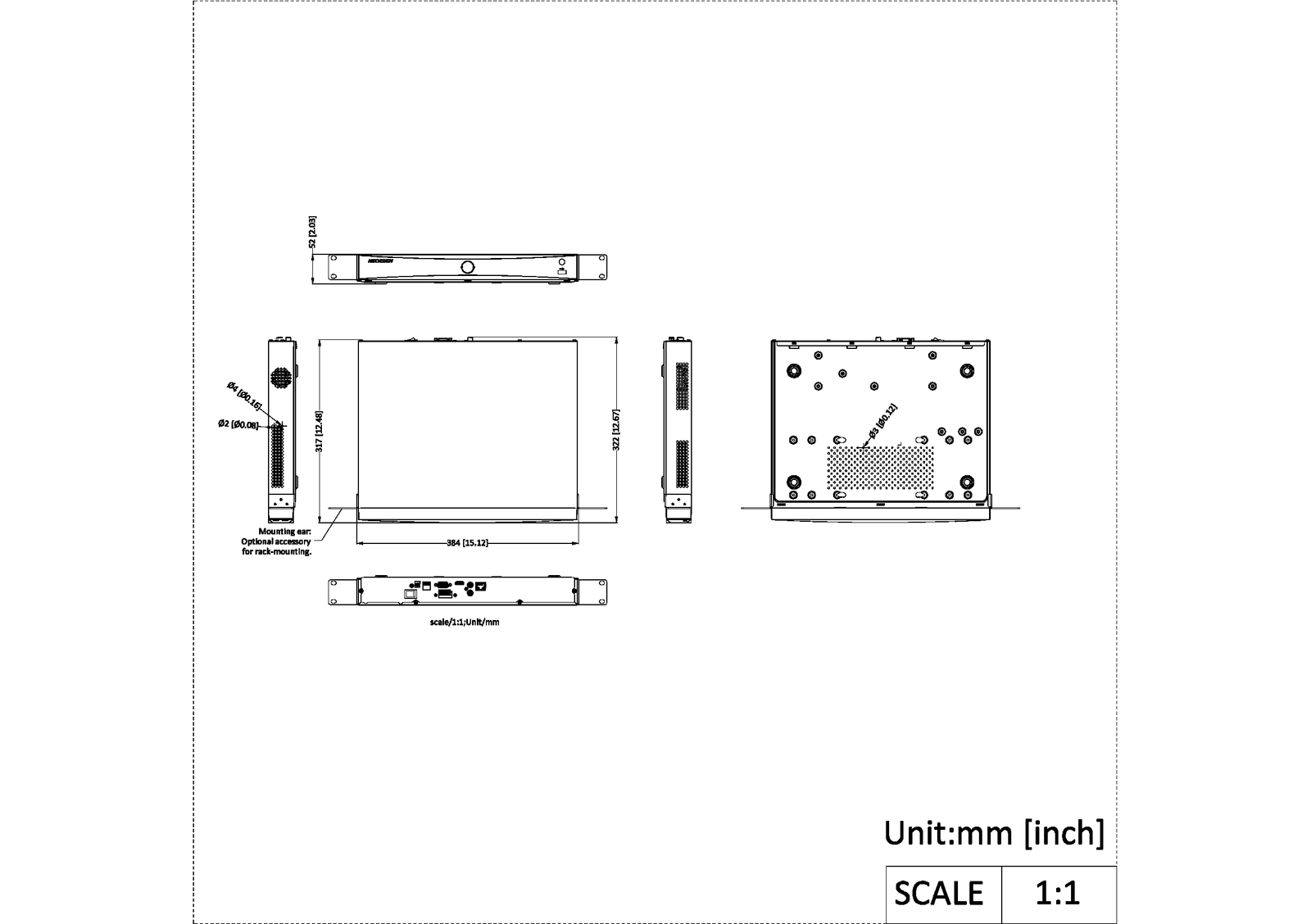

| Dydis | 384 mm × 317 mm × 52 mm (15.1 × 12.5 × 2.0 inch) |
| GUI kalba | English,Russian,Bulgarian,Hungarian,Greek,German,Italian,Czech,Slovakia,French,Polish,Dutch,Portuguese,Spanish,Romanian,Turkish,Japanese,Danish,Swedish,Norwegian,Finnish,Korean,TraChinese,Thai,Estonia,Vietnamese,Croatian,Slovenian,Serbian,Latvian,Lithuanian,Uzbek,Kazak,Arabic,Hebrew,Ukrainian,Indonesian |
| Maitinimo šaltinis | 12 VDC, 3.33 A |
| Svoris | ≤ 3 kg (without HDD, 4.0 lb.) |
| Darbinė drėgmė | 10 to 90 % |
| Darbinė temperatūra | -10 °C to 55 °C (14 °F to 131 °F) |
Išmanioji analizė
| AI by NVR | Facial recognition, perimeter protection, motion detection 2.0, AcuSearch, AcuSeek |
|---|---|
| AI by NVR and Camera | Facial recognition, perimeter protection, motion detection2.0, ANPR, VCA |
Judesio aptikimas 2.0
| Pagal kamerą | All channels |
|---|---|
| By NVR | All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
Tinklas
| Tinklo sąsaja | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
|---|---|
| Protokolai | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Nuotolinis prisijungimas | 128 |
Perimetro apsauga
| Pagal kamerą | All channels |
|---|---|
| By NVR | Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm. Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch |
Vaizdas ir garsas
| Garso įvestis | Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
|---|---|
| Garso išvestis | 1-ch, RCA (Linear, 1 KΩ) |
| HDMI išvestis | 4K（3840×2160）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz，UXGA（1600×1200）/60Hz，SXGA（1280×1024）/60Hz，720P（1280×720）/60Hz |
| IP Speaker Input | 4-ch |
| IP vaizdo įrašų įvestis | 8-ch |
| Įeinantis pralaidumas | 80 Mbps |
| Išeinantis pralaidumas | 160 Mbps |
| VGA išvestis | 1080P（1920×1080）/60Hz，UXGA（1600×1200）/60Hz，SXGA（1280×1024）/60Hz，720P（1280×720）/60Hz |
| Vaizdo išvesties režimas | HDMI/VGA independent output |
